This series of Circular-motion Vibrating Screen is special designed for stone. lt also apply to coal dressing, ore dressing, buildingmate rial electic and chemical industies is ect as products grada-tion. YA and YK series a kind of the lastest model at home. lt adopte a box-vibrteexciting, blockec centric and tyre coupler. And it makes a feature of advanced construcion, strong vibrating force, low vibrating noise, easy maintenanc, sturdy and durable.

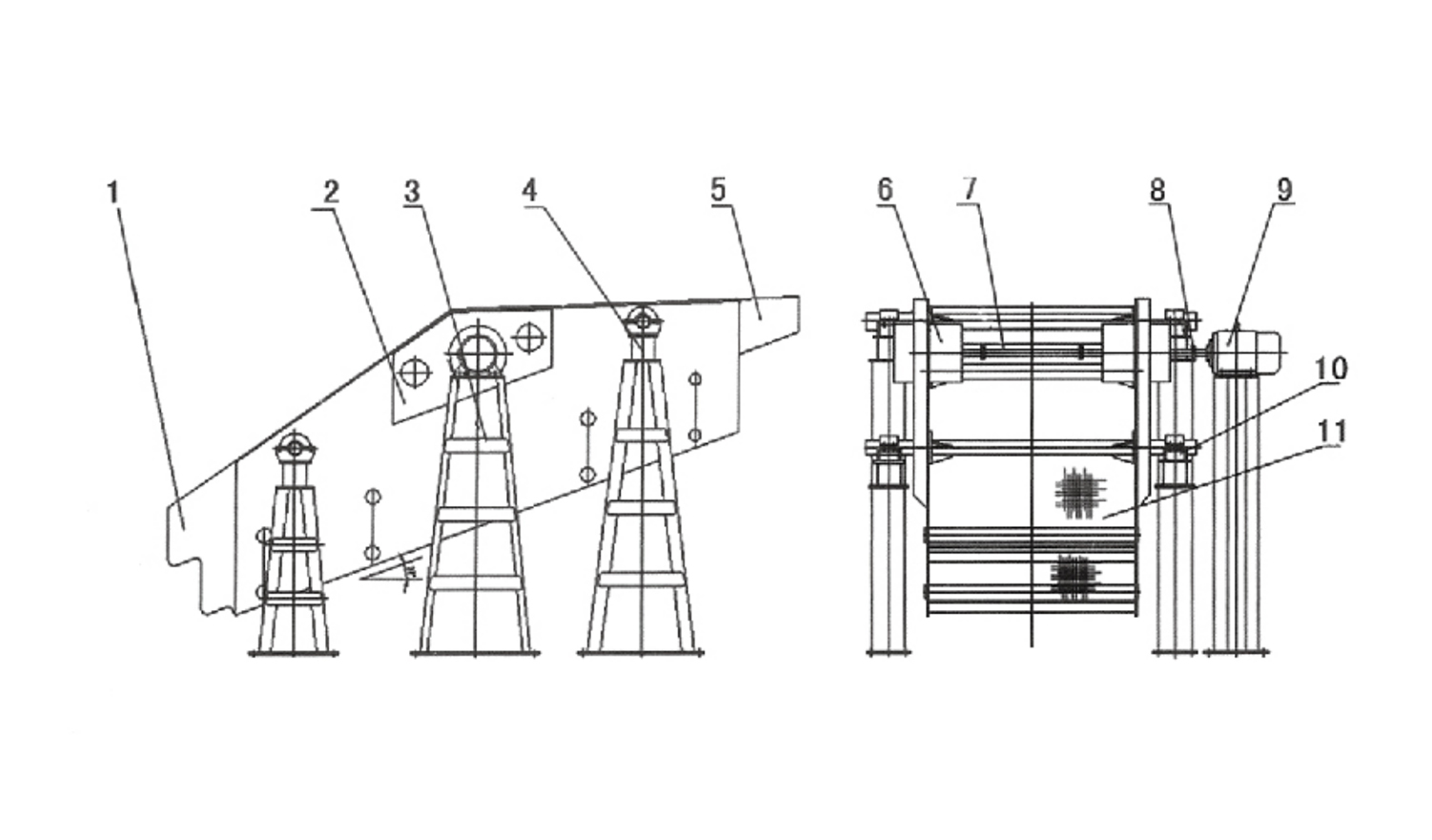

1.Feed Slots
2.Vibrator
3.Electromotor Frame
4. Rubber Springs
5.Receive Feed Slots
6. Vibrator
7. Transmission
8. Coupling
9.Electromotor
10.Frame
11.Screen Mesh
| MODEL | SCREEN AREA | SCREEN MESH | SCREEN MESH | MAX FEED SIZE | CAPACITY | DOUBLE AMPLITUDE | MOTOR POWER | OVERALL DIMENSIONS | WEIGHT | SCREEN MESH |
| (M2) | (MM) | (MM) | (M3/H) | (MM) | (KW) | (L W H )MM | (KG) | (MM ) | ||
| YZ918 | 1 | 1.62 | 3-50 | 100 | 5-50 | 8 | 5.5 | 1868*1708*1237 | 1299 | 900*1800 |
| 2YZ924 | 2 | 2.16 | 3-50 | 100 | 7-60 | 8 | 5.5 | 2820*1754*2103 | 2057 | 900*2400 |
| 2YZ930 | 2 | 2.7 | 3-50 | 100 | 8-70 | 8 | 5.5 | 3350*1870*2215 | 1680 | 900*3000 |
| YZ1020 | 1 | 2 | 3-50 | 100 | 8-50 | 8 | 5.5 | 2160*1770*1075 | 1400 | 980*2000 |
| 2YZ1020 | 2 | 2 | 3-50 | 100 | 8-50 | 8 | 5.5 | 2160*1770*1075 | 1490 | 1000*2000 |
| YZ1230 | 1 | 3.6 | 5-50 | 200 | 8-80 | 8 | 5.5 | 3073*2030*1611 | 1750 | 1200*3000 |
| 2YZ1230 | 2 | 3.6 | 5-50 | 200 | 8-80 | 8 | 7.5 | 3122*2050*2247 | 2700 | 1200*3000 |
| 3YZ1230 | 3 | 3.6 | 5-50 | 200 | 8-80 | 8 | 7.5 | 3362*2233*2798 | 3050 | 1200*3000 |
| 3YZ1236 | 3 | 4 | 5-50 | 200 | 9-93 | 8 | 11 | 3900*2271*2778 | 4290 | 1200*3600 |
| 2YZ1542 | 2 | 6 | 5-50 | 400 | 50-208 | 8 | 15 | 4400*2610*2875 | 5336 | 1500*4200 |
| 3YZ1542 | 3 | 6 | 5-50 | 200 | 50-208 | 8 | 15 | 4572*2800*3611 | 5961 | 1500*4200 |
| 3YZ1548 | 3 | 7 | 5-50 | 400 | 50-275 | 8 | 15 | 5011*3986*2653 | 6070 | 1500*4800 |
| YZ1848 | 1 | 8.64 | 5-100 | 400 | 56-330 | 8 | 15 | 4976*3023*3002 | 7122 | 1800*4800 |
| 2YZ1848 | 2 | 8.64 | 5-100 | 400 | 56-330 | 8 | 15 | 4976*3023*3002 | 7740 | 1800*4800 |
| 3YZ1848 | 3 | 8.64 | 5-100 | 400 | 56-330 | 8 | 15 | 5066*3986*2969 | 6935 | 1800*4800 |
| 3YZ1860 | 3 | 10.8 | 5-100 | 400 | 70-650 | 7 | 22 | 6125*2516*4115 | 7700 | 1800*6000 |
| 2YK1245 | 2 | 5.4 | 5-50 | 200 | 35-206 | 7 | 11 | 4872*2610*2520 | 4320 | 1200*4500 |
| 3YK1245 | 3 | 5.4 | 5-50 | 200 | 35-206 | 8 | 11 | 5155*2686*3754 | 4460 | 1200*4500 |
| YK1535 | 1 | 5.25 | 5-50 | 200 | 34-200 | 8 | 11 | 4684*2971*2404 | 3355 | 1500*3500 |
| 3YK1535 | 3 | 5.25 | 5-50 | 400 | 34-200 | 8 | 15 | 4719*3106*3273 | 5710 | 1500*3500 |
| YK1545 | 1 | 6.75 | 5-50 | 400 | 44-258 | 8 | 11 | 4806*2911*2076 | 3900 | 1500*4500 |
| 2YK1545 | 2 | 6.75 | 5-50 | 400 | 44-258 | 8 | 15 | 4650*2820*3500 | 4370 | 1500*4500 |
| 3YK1545 | 3 | 6.75 | 5-50 | 400 | 44-258 | 8 | 15 | 5650*3000*3800 | 5832 | 1500*4500 |
| 3YK1548 | 3 | 7.2 | 5-50 | 400 | 47-275 | 7 | 15 | 5011*3986*2653 | 6070 | 1500*4800 |
| 4YK1548 | 4 | 7.2 | 5-100 | 200 | 47-275 | 8 | 18.5 | 4800*2947*4045 | 090 | 1500*4800 |
| YK1848 | 1 | 8.8 | 5-100 | 400 | 56-330 | 11 | 15 | 4904*3020*2943 | 7122 | 1800*4800 |
| 2YK1848 | 2 | 8.8 | 5-100 | 400 | 56-330 | 11 | 15 | 4802*3009*2860 | 6189 | 1830*4800 |
| 3YK1848 | 3 | 8.8 | 5-100 | 400 | 56-330 | 7 | 22 | 5066*3986*2969 | 6935 | 1800*4800 |
| 2YK1854 | 2 | 9.72 | 5-100 | 400 | 63-586 | 7 | 22 | 5200*3400*3911 | 7602 | 1800*5400 |
| 3YK1854 | 3 | 9.72 | 5-100 | 400 | 32-360 | 8 | 22 | 6200*3326*3593 | 7750 | 1800*5400 |
| 4YK1854 | 4 | 9.72 | 5-150 | 200 | 32-310 | 8 | 30 | 5447*3417*4266 | 10530 | 1800*5400 |
| YK2154 | 1 | 11.3 | 5-100 | 400 | 73-683 | 8 | 18.5 | 5400*3547*2750 | 5269 | 2100*5400 |
| 2YK2154 | 2 | 11.3 | 5-100 | 400 | 73-683 | 8 | 22 | 5400*3650*3856 | 7851 | 2100*5400 |
| 3YK2154 | 3 | 11.3 | 5-100 | 400 | 73-683 | 8 | 22 | 5590*3600*3900 | 9857 | 2100*5400 |
| 2YK2160 | 2 | 12.6 | 5-100 | 400 | 81-720 | 8 | 30 | 6375*3821*3707 | 9240 | 2100*6000 |
| 3YK2160 | 3 | 12.6 | 5-100 | 400 | 81-720 | 7 | 30 | 6453*3821*4907 | 12757 | 2100*6000 |
| 4YK2160 | 4 | 12.6 | 5-100 | 400 | 66-720 | 8 | 45 | 6455*4064.5*5367 | 15125 | 2100*6000 |
| 2YK2280 | 2 | 17.6 | 5-150 | 450 | 90-750 | 8 | 30 | 8000*3835*4747 | 10180 | 2200*8000 |
| YK2460 | 1 | 14.4 | 5-150 | 400 | 150-810 | 8 | 22 | 6050*4035*3005 | 6200 | 2400*6000 |
| 2YK2460 | 2 | 14.4 | 5-150 | 400 | 150-810 | 8 | 30 | 6050*4035*4087 | 8013 | 2400*6000 |
| 3YK2460 | 3 | 14.4 | 5-150 | 200 | 450-650 | 8 | 37 | 6050*4234*4594 | 10762 | 2400*6000 |
| 4YK2460 | 4 | 14.4 | 5-150 | 200 | 450-650 | 8 | 45 | 6050*4266*5073 | 12786 | 2400*6000 |
