Our company's Jaw Crusher stands for the more advanced and reliable crushing technology and manufacturing standard at primary and secondary crush in this industry. XINGYE PE series Jaw Crusher adopts antiwear material with high manganese, light weight, high strength and rigidity and low energy consumption. Not only greatly reduce the equipment operation cost, but also has a big feed size and epigranular final product, it stands for the highest standard of Chinese primary crush.XINGYE PEX series Jaw Crusher can fully guarantee customers, crunshing requirements form various industries, indluding mining, metallurgy building materials, water consercancy, chemistry, etc. Relying on its low rotary speed, high stability and low equipment operation cost. XNGYE occupies the leader position in the Chinese secondary crushing industry.

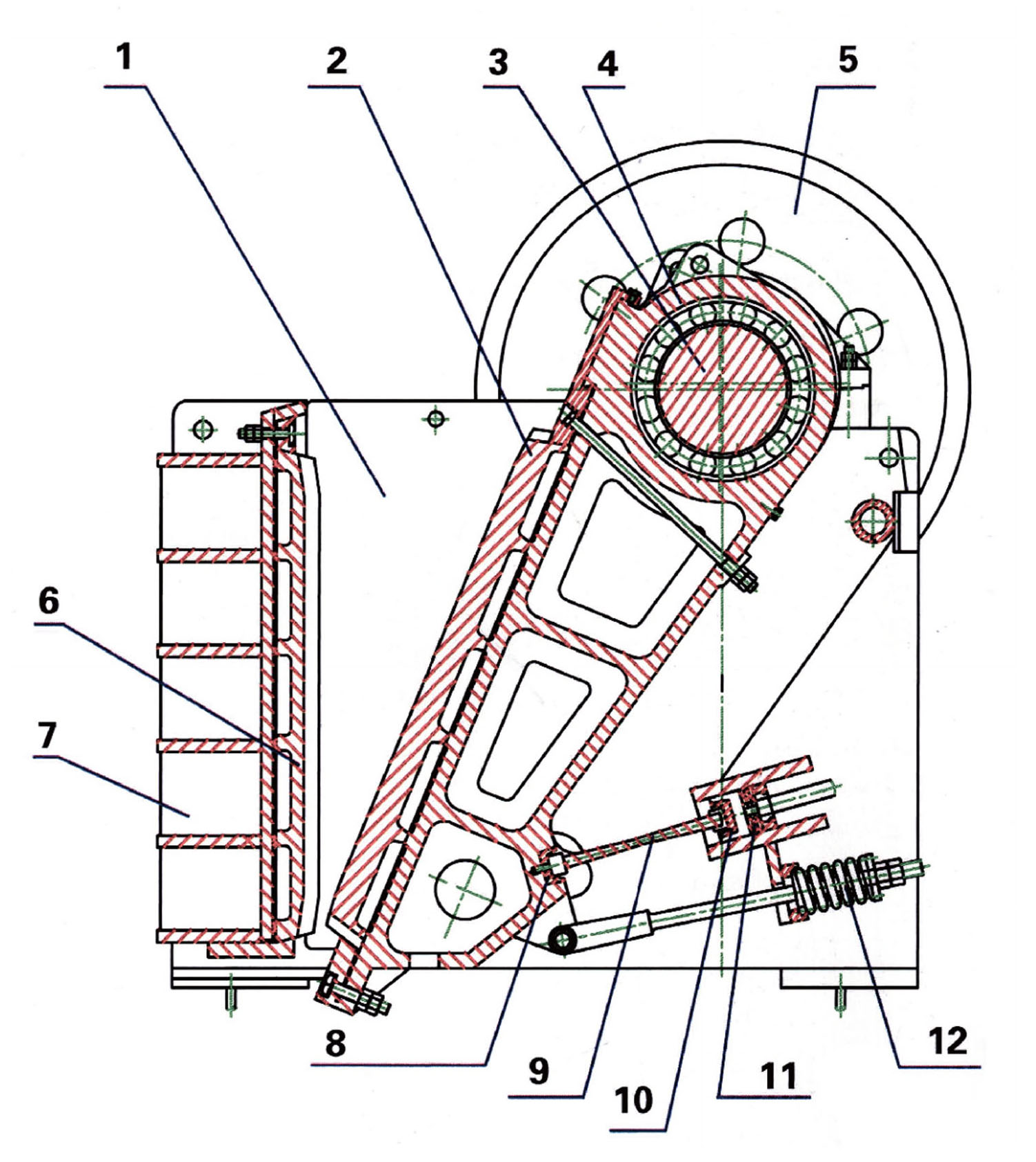

1、cheek plate
2、Movable jaw plate
3、Eccentric shaft
4、Swing jaw
5、Flywheel
6、Fixed jaw plate
7、Frame
8、Toggle plate pad
9、Toggle plate
10、Toggle plate pad
11、Adjustment part
12、Pull-rod spring part
1、 The most classic design, the best manufacturing technology and materials, and durable service.
2、 Proper cavity design.
3、 The discharge port can be adjusted conveniently and flexibly.
4、 Various jaw plates availaple.
5、 The most durable bearing is applied.
6、 High-quality cast-steel swing jaw assembly.
| Model | Feeding material size(mm) | Max. feeding grain size(mm) | Adjustment range of discharging material(mm) | Production Capacity(t/h) | Power(kw) | Weight excluding motor(t) |
| PE-60x100 | 60x100 | 45 | 3.0-10 | 0.32-0.96 | 1.1 | 0.116 |
| PE-150x250 | 150x250 | 125 | 10-40 | 0.96-4.8 | 5.5 | 0.81 |
| PE-250x400 | 250x400 | 210 | 20-80 | 5-21 | 15 | 2.8 |
| PE-250x500 | 250x500 | 210 | 20-80 | 5.7-31 | 18.5 | 3.25 |
| PE-400x600 | 400x600 | 340 | 40-100 | 16-64 | 30 | 6.5 |
| PE-500x750 | 500x750 | 425 | 50-100 | 45.6-100 | 55 | 10.3 |
| PE-600x900 | 600x900 | 630 | 65-160 | 48-120 | 55/75 | 15.5 |
| PE-750x1060 | 750x1060 | 630 | 80-140 | 51-208 | 110 | 25.1 |
| PE-800x1060 | 800x1060 | 650 | 100-200 | 136-228.8 | 110 | 28.3 |
| PE-870x1060 | 870x1060 | 670 | 200-260 | 288-384 | 110 | 28.7 |
| PE-900x1200 | 900x1200 | 750 | 100-200 | 144-304 | 132 | 43.3 |
| PE-1000x1200 | 1000x1200 | 850 | 195-265 | 315-342 | 132 | 50.6 |
| PE-1200x1500 | 1200x1500 | 950 | 150-350 | 300-800 | 220 | 78.14 |
| PE-1500x1800 | 1500x1800 | 1200 | 220-350 | 450-1000 | 355 | 122 |
| PEX-100x600 | 100x600 | 80 | 7-20 | 2-8 | 7.5 | 0.9 |
| PEX-150x750 | 150x750 | 120 | 18-48 | 5-16 | 15 | 3.5 |
| PEX-250x750 | 250x750 | 210 | 25-60 | 12.8-35.2 | 22 | 5.1 |
| PEX-200x1000 | 200x1000 | 160 | 20-55 | 11-38 | 22 | 6.5 |
| PEX-250x1000 | 250x1000 | 210 | 25-60 | 16-51.2 | 37/30 | 6.5 |
| PEX-250x1200 | 250x1200 | 210 | 25-60 | 20-60 | 37 | 7.7 |
| PEX-300x1300 | 300x1300 | 25 | 20-90 | 16-104 | 75 | 11 |
