VSl Deep-cavity Vertical Shaft Impact Crusher Series is a crusher developed by our company for impacting between materials and between material and metal. There are two kinds of crushing cavities: "stone striking stone" and "stone striking iron". This machine is noonly widely used for extremely hard materials, but also available for artificial sand making, pregrinding cement, refractory and the other materials with large performance diferences, such as granite, basalt, limestone, quartzite, gneiss, cement clinker, concrete aggregate, etc. lt has more advantages than other types of crushers.

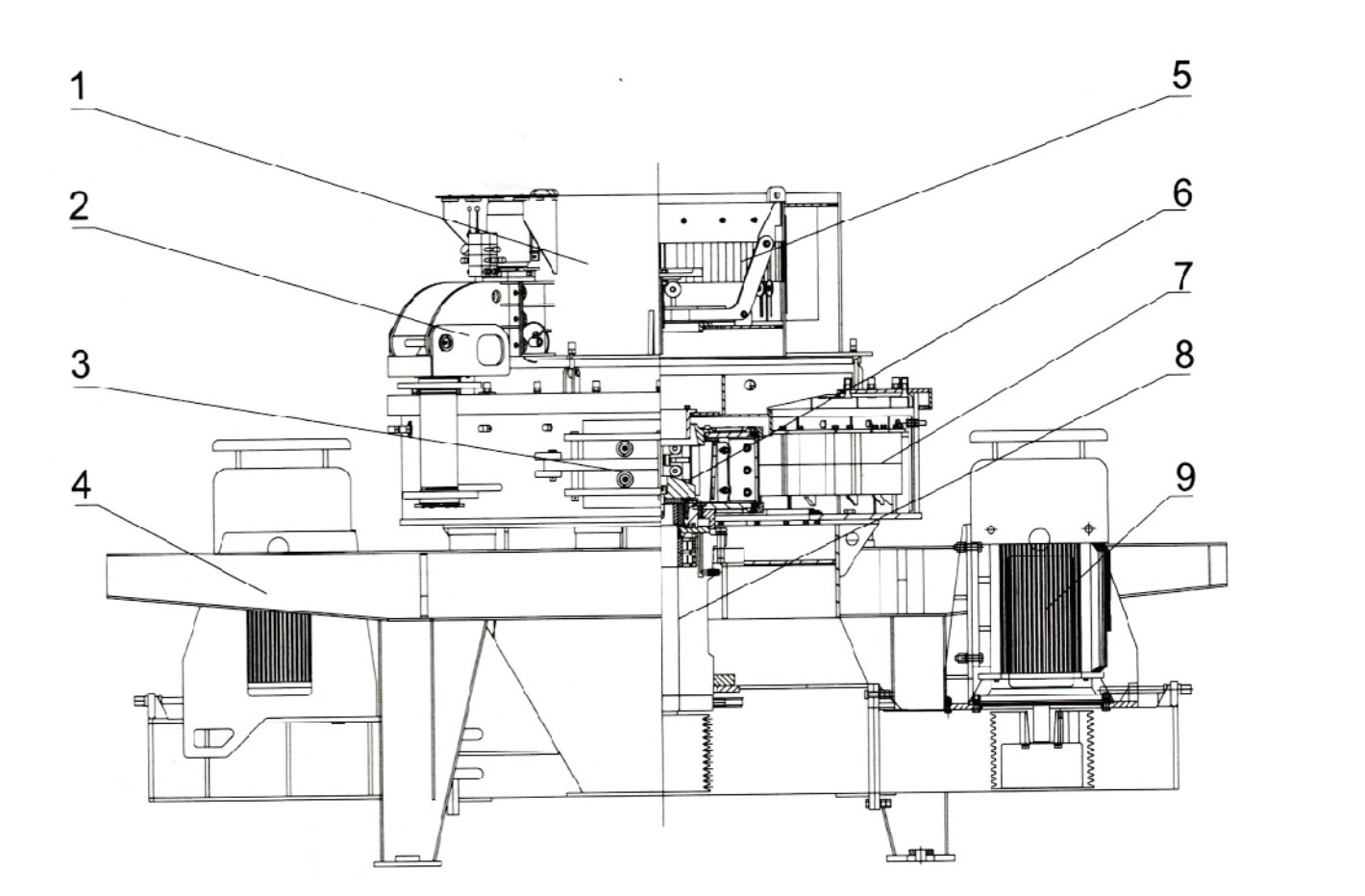

1、Hopper
2、Hydraulic cover
3、Inspection door
4、Frame assembly
5、Bypass overflow device
6、Deep cavity rotor
7、Crushing cavity
8、Bearing box assembly
9、Motor assembly
1、Optimized desian and reduced production cost.
2、Hydraulic device and thin oil lubrication.
3、Higher pass rate and higher output.
4、One machine is multi-purpose and flexible in application.
5、lt is easy, safe and reliable to operate.
6、Environmental protection.
7、Special sealing and convenient maintenance.
| Model | VSI-850 | VS1-950 | VS1-1100 | ||||
| Processing Capacity (t/h) | Side-flow material&Centred feeding | 120-180 | 160-250 | 200-320 | 280-450 | 310-500 | 350-550 |
| Centred feeding | 85-150 | 125-200 | 150-250 | 210-320 | 250-380 | 280-450 | |
| Best feeding size (mm) | Material | 40 | 45 | 50 | |||
| Hard material | 35 | 40 | 45 | ||||
| Rotary speed(r/min) | 1200-1800 | 1300-1700 | 1000-1500 | ||||
| Installation power(kw) | Single motor | Dual motor | |||||
| Crushing mode | Stone to stone, stone to iron (shaping, sand making) | ||||||
| Overall dimensions Length x width x height(mm) | 4140x2500x2700 | 4560x2600x2900 | 5100x2790x3320 | ||||
| Weight(t) | 13.5 | 16.5 | 19.5 | ||||
| Power Supply | 380V50Hz | ||||||
| Thin oill ubrication station | Motor power of double oil pumps | 2x0.75kw | |||||
| Safty protection | Complementary oil supply with double oi pumps: Automatic shutdown without oil flow:Optional temperature reduction by water cooling / air cooling | ||||||
| Heating power of oil tank | 3kw | ||||||
Overall dimensions Length x width x height(mm) | 800x500x1000 | ||||||
