Vertical Shaft limpact Crusher of SCB series adopts the world-class technology and equipment, and is developed and produced with ahichtech level. It is an example of perfect combination of professional technology and mechanical manufacturing and a full embodiment of new technology and new process. It is widely used in highway, raiway, construction, municipal engineering concrete mixing station to produce high quality aggregate, and has become the core equipment of machine-made sand industry and stone shaping field.

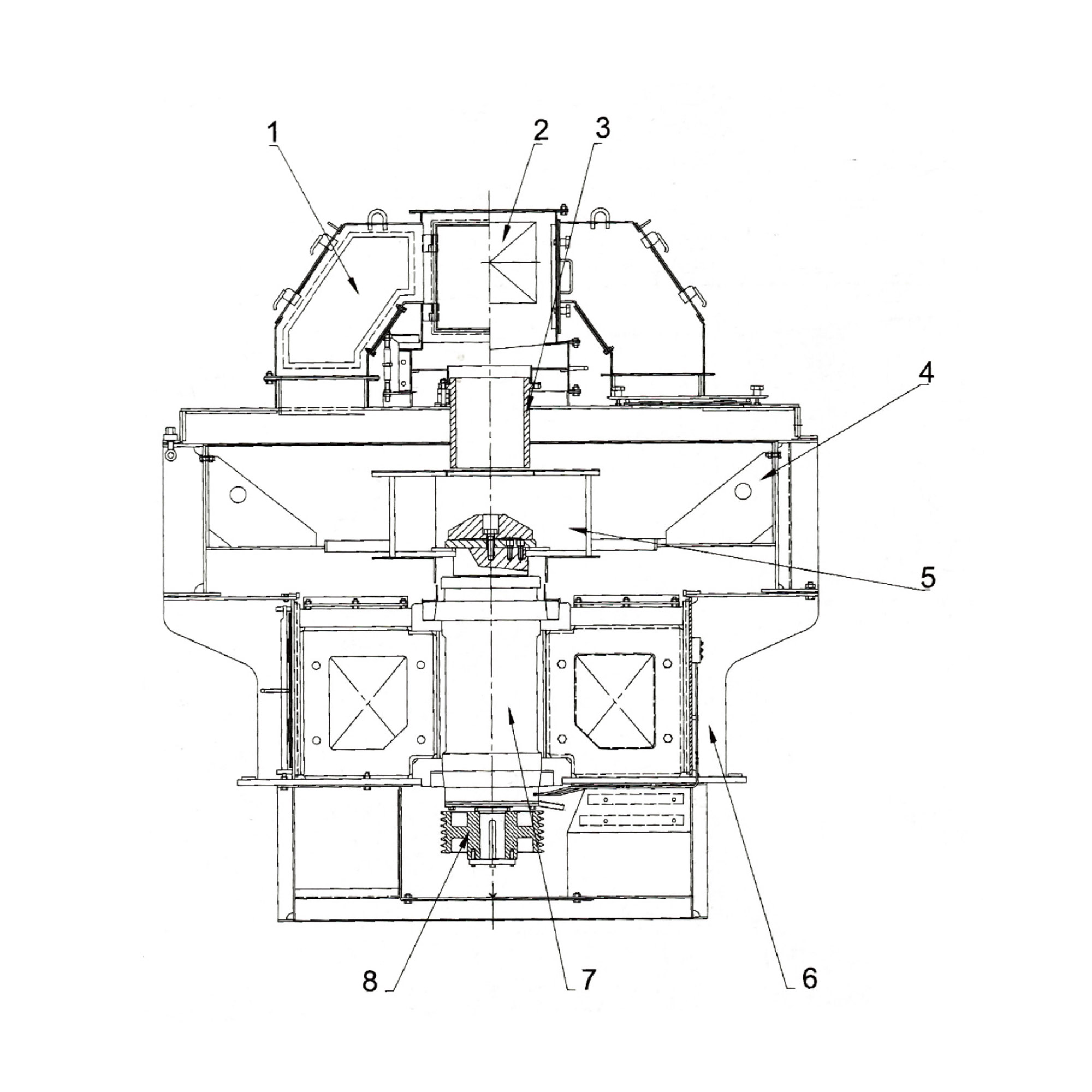

1、Dust circulation system
2、Hopper
3、Feeding pipe
4、Crushing cavity
7、Shaft system
5、Rotor
6、Frame
8、Host pulley
1、Excelent crushing performance.
2、The wearing parts have long service life, and special hioh-chromium iron and super hard alloy are used to reduce the use cost.
3、Hign treatment capacity and large output.
4、One machine is multi-purpose and flexible in application, realizing the conversion of "stone striking stone" and "stone striking iron".
5、Product has excelent qrain shape.
6、Low noise, low vibration, patented unigue air self-circulation system, reduced dust, which is conducive to environmental protection.
| Model | Max. feeding grain size(mm) | Rotary speed of main shaft(r/min) | Processing capacity(t/h) | Power(kw) | Weight(t) |
| SCBF-900 | 20x30x35 | 1530 | 45-88 | 132 | 8 |
| SCBF-1000 | 25x35x45 | 1275-148 | 67-128 | 220 | 14.5 |
| SCBF-1200 | 25x35x45 | 1061 | 130-250 | 250-315 | 15.5 |
| SCBF-1000 | 45x60x80 | 955-1062 | 133-250 | 160-220 | 10 |
| SCBF-1200 | 45x60x80 | 794-881 | 185-325 | 250-315 | 12 |
