The product of this series has two-stage impact plate and three-stage impact plate, can handle materials with side length of less than 100-800 mm, and is available for crushing medium-hard materials.lts compressive strength can reach 350mpa. The discharging grain size is smaller, the material grainsize is good, and the qrain is cubic. The rotor parts are carefully made, and the rotor dynamic and static balance is good. The machine runs smoothly with low noise.

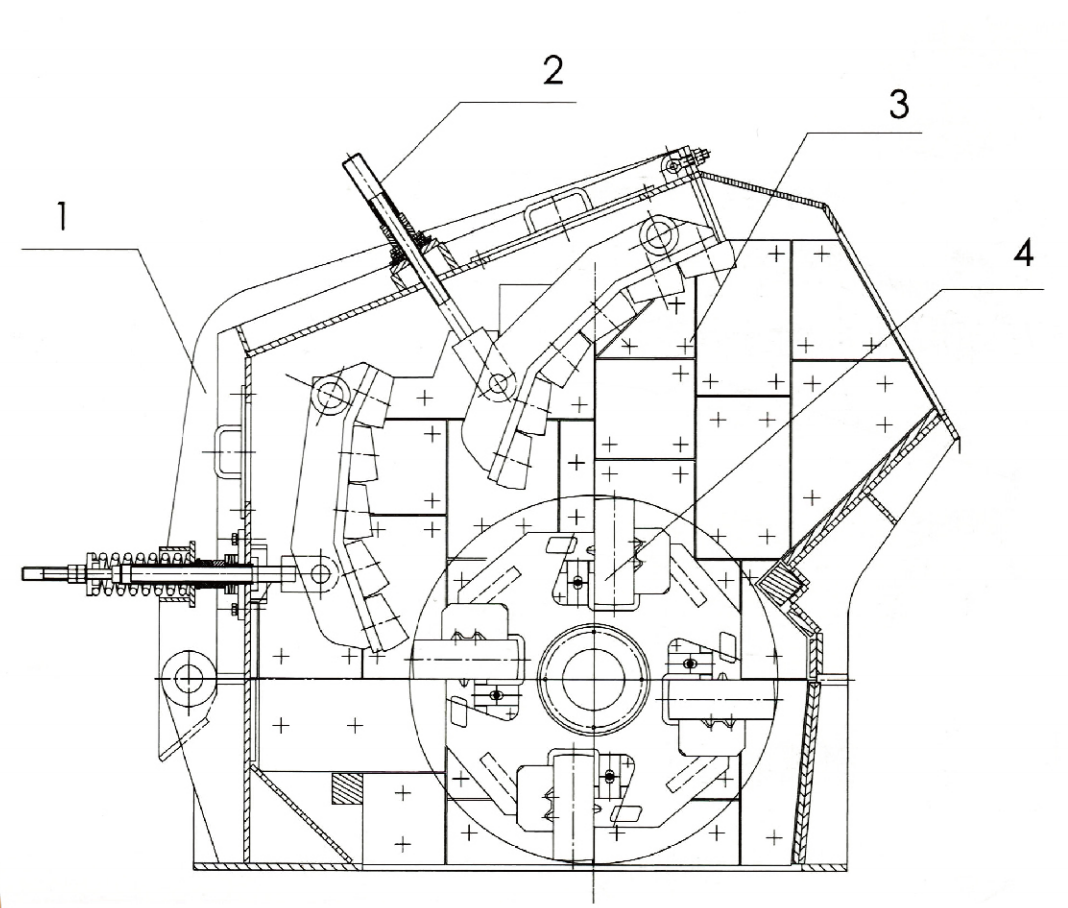

1、Frame
2、Adjusting device
3、Lining plate
4、Rotor
1、Unique design and good crushing effect.
2、Excellent rotor structure design.
3、The impact frame is adjustable, convenient and flexible.
4、Selecting the most durable part materials.
5、Good frame opening structure design.
| Model | Rotor specification(mm) | Feeding material(mm) | Max. feeding material(mm) | Processing capacity(t/h) | Power(kw) | Weight (excluding motor)(t) |
| PF-1007VI | Φ 1000 x700 | 400 x 730 | 300 | 30-50 | 55 | 9.5 |
| PF-1010V | Φ 1000 x 1050 | 400 x 1080 | 350 | 50-80 | 55 | 12.8 |
| PF-1210V | Φ 1280 x 1050 | 400 x 1080 | 350 | 70-120 | 110 | 14.1 |
| PF-1214V | Φ 1280 x1400 | 400 x 1430 | 350 | 95-145 | 132 | 16.8 |
| PF-1315V | Φ 1320 x 1500 | 800 x 1530 | 300 | 100-180 | 185/220 | 21 |
| PF-1320V | Φ 1320 x 2000 | 800 x 2030 | 400 | 280-320 | 280 | 29.7 |
| PF-1214VI | Φ 1280 x1400 | 400 x 1430 | 350 | 95-145 | 132 | 15.3 |
| PF-1315VI | Ф 1320 x 1500 | 800 x 1530 | 500 | 120-200 | 185 | 18.9 |
| PF-1420 | Ф 1400 x 2000 | 1250 x 2030 | 600 | 250-350 | 355 | 40 |
| PF-1620 | Ф 1600 x2000 | 1600 x 2080 | 600-800 | 350-400 | 560 | 47.5 |
