This machine has compact structure and high production efficiency. The bowl-type bearing has the high precision reserve, and the centralized thin oil lubrication system and the novel dry oil sealing dust-proof system are adopted. When the uncrushable material enters the crushing cavity,the spring safety device can protect the equipment from damage, which is usually used in the secondary crushing and tertiary crushing.lt is available for crushing variousores and rocks with medium hardness or above, such as iron ore, copper ore, limestone, quartz, granite, sandstone, etc. The standard model is available for medium crushing, and medium-sized and short-head models are available for fine crushing. lt's widely used in mineral processing, building materials, water conseryancy, chemical industry and other fields.

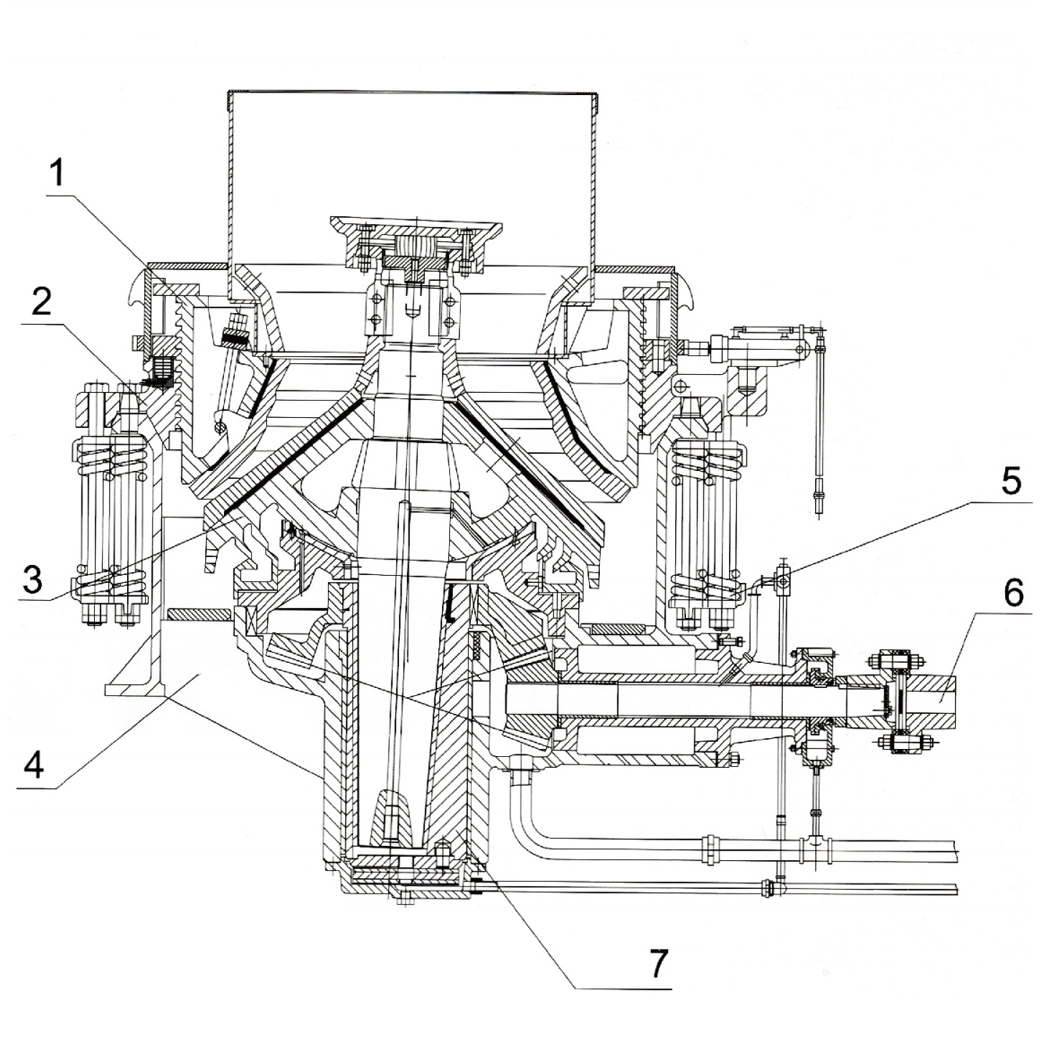

1、Adjusting sleeve part
2、Support sleeve part
3、Crushing cone part
4、Frame part
5、Spring part
6、Transmission part
7、Eccentric sleeve part
1、Large crushing ratio.
2、The adjustment of discharge port is convenient and fast.
3、The wear of rolling mortar wall is uniform and the service life is long.
4、The maintenance cost is low.
5、Good material grain size.
6、Protection against iron overload.
7、Dry oil or water sealing forms are adopted.
8、The product runs stably and has high reliability.
| Model | Max.Feed Size(mm) | Adjustment range of discharge port (mm) | Processing capacity (t/h) | Power.(kw) | Weight(t) |
| PYB-600 | 65 | 12-25 | 25-40 | 30 | 5.3 |
| PYD-600 | 35 | 3-15 | 12-23 | 5.3 | |
| PYB-900 | 115 | 15-50 | 50-90 | 55 | 11.2 |
| PYZ-900 | 60 | 5-20 | 50-65 | 11.2 | |
| PYD-900 | 40 | 3-13 | 14-50 | 11.3 | |
| PYB-900 II | 115 | 15-50 | 49-85 | 55 | 11.2 |
| PYZ-900 II | 60 | 5-35 | 20-65 | 11.2 | |
| PYD-900 II | 40 | 3-13 | 14-50 | 11.3 | |
| PYB-1200 | 145 | 20-50 | 110-168 | 110 | 24.7 |
| PYZ-1200 | 100 | 8-25 | 42-134 | 25 | |
| PYD-1200 | 50 | 3-15 | 18-105 | 25.3 | |
| PYB-1200 II | 145 | 20-50 | 110-168 | 110 | 24.7 |
| PYD-1200 II | 50 | 3-15 | 17-105 | 25.3 | |
| PYB-1750 | 215 | 25-60 | 280-480 | 155 | 50.3 |
| PYZ-1750 | 185 | 10-30 | 115-320 | 50.3 | |
| PYD-1750 | 85 | 5-15 | 75-230 | 50.2 | |
| PYB-1750 II | 215 | 25-60 | 280-480 | 155 | 50.3 |
| PYD-1750 II | 85 | 5-15 | 75-230 | 50.2 | |
| PYB-2200 II | 300 | 30-60 | 590-1000 | 280 | 83.1 |
| PYD-2200 II | 100 | 5-15 | 120-340 | 83.5 |
