Our company's Single Cylinder Hydraulic Cone Crusher has high technology content in crushing machinery, with the characteristics of large processing capacity, high degree of automation and energy saving. lt has gradually replaced the traditional compound pendulum jaw crusher and spring cone crusher. The Cone Crusher of XINGYE DY/DYS series is a single hydraulic cylinder with a hydraulic protection device at the bottom. The discharge port is adjusted by the floating up and down of main shaft to adjust the position of crushing cone, so as to adjust the size of discharge port. The Cone Crusher of XINGYEDY/DYS series is a single cylinder wave pressure cone crusher. lt is mainly used for crushing various ores and rocks with compressive strength less than 300mpa and medium and above hardness, and widely used in metalurgical industry building material industry road construction industry and chemical industry.

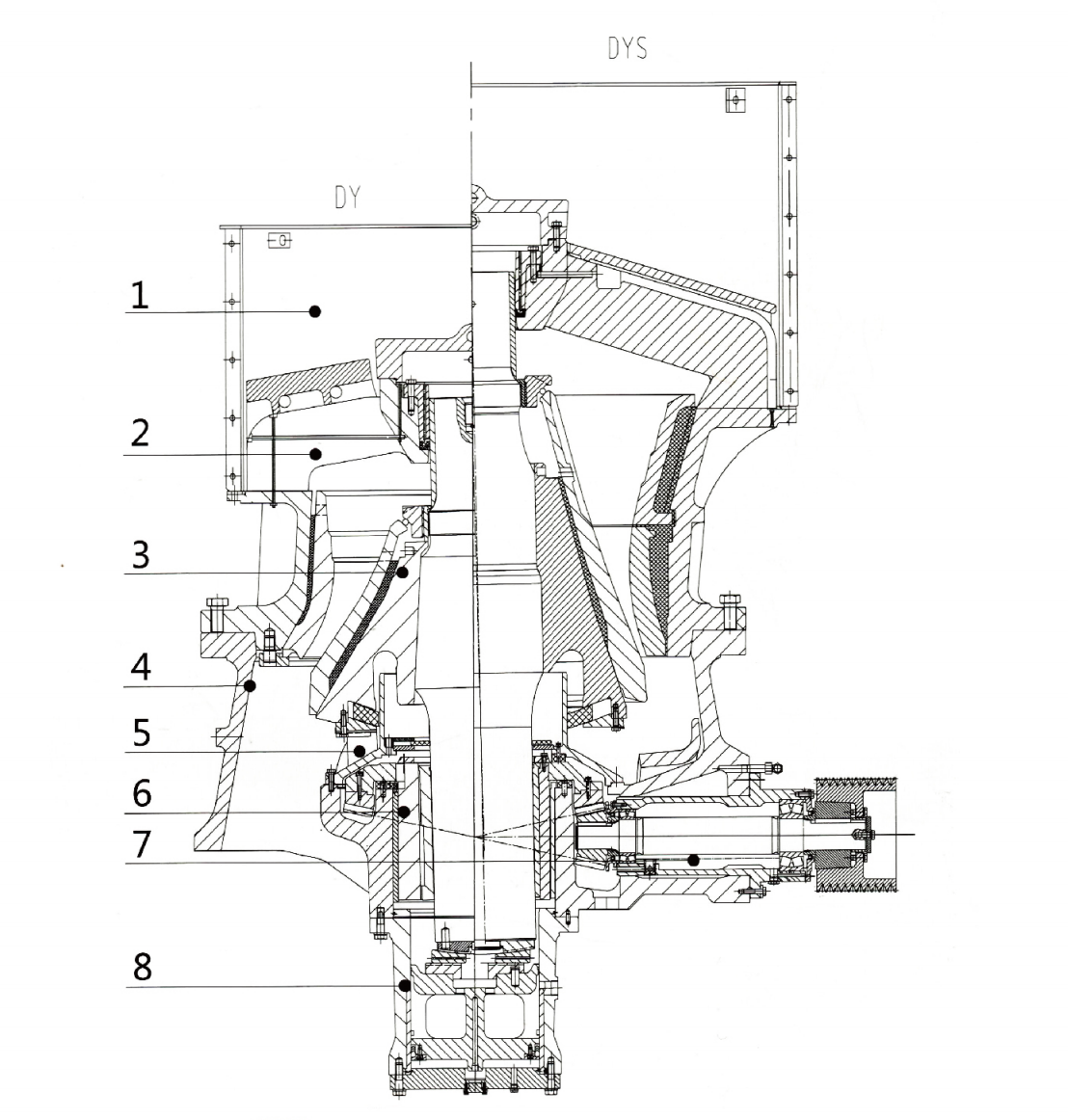

1、Feeding device
2、Upper frame part
3、Crushing cone part
4、Lower frame part
5、Sealing part
6、Eccentric sleeve part
7、Transmission part
8、Hydraulic cylinder part
1、Using the principle of laminated crushing and the grain shape is good.
2、In application of dustproof structure and hydraulic protection device.
3、Using spiral bevel gear to prolong the service life of gear.
4、Various choices of eccentric distances and diversity of cavity types.
5、Adopting PLC control.
| Model | Weight(t) | Motor Power (kw) | Cavity Type | Max. feeding grain size (mm) | Standard production capacity for discharge port css(mm) to the well(t/h) | |||||||||||
| 6 | 8 | 10 | 13 | 16 | 19 | 22 | 25 | 32 | 38 | 44 | 51 | |||||
| DY560 | 15.5 | 250 | EC | 217 | 115-202 | 123-279 | 132-297 | 140-316 | 160-360 | 177-399 | ||||||
| C | 177 | 102 | 110-220 | 118-295 | 126-316 | 135-336 | 153-382 | 169-339 | ||||||||
| MC | 142 | 98-124 | 107-266 | 115-286 | 122-305 | 130-325 | 148-333 | 163-245 | ||||||||
| M | 112 | 119-190 | 128-283 | 138-303 | 148-324 | 157-345 | 179-286 | 198 | ||||||||
| MF | 87 | 117 | 127-232 | 137-251 | 147-269 | 157-288 | 167-306 | 190-254 | ||||||||
| F | 72 | 93-139 | 99-181 | 107-196 | 115-212 | 123-227 | 133-243 | 141-258 | 160-214 | |||||||
| EF | 40 | 100 | 125 | |||||||||||||
| DY675 | 29 | 315 | EC | 280 | 180 | 193-344 | 207-444 | 220-472 | 250-557 | 277-616 | 303-674 | 334-520 | ||||
| CX | 250 | 178-198 | 191-382 | 204-498 | 216-530 | 247-604 | 273-667 | 299-532 | 330-366 | |||||||
| C | 220 | 175-194 | 188-376 | 201-491 | 214-522 | 244-596 | 269-658 | 295-524 | 324-361 | |||||||
| MC | 180 | 167-260 | 179-438 | 191-468 | 204-498 | 232-568 | 256-513 | 281-374 | ||||||||
| M | 140 | 204-306 | 219-456 | 234-487 | 249-519 | 284-521 | 313-418 | |||||||||
| MF | 120 | 200 | 216-385 | 232-413 | 247-441 | 263-470 | 299-471 | 332-379 | ||||||||
| F | 90 | 206-322 | 222-347 | 238-373 | 255-398 | 271-424 | 309-425 | 342 | ||||||||
| EF | 70 | 227-316 | 244-340 | 263-321 | 281-312 | |||||||||||
